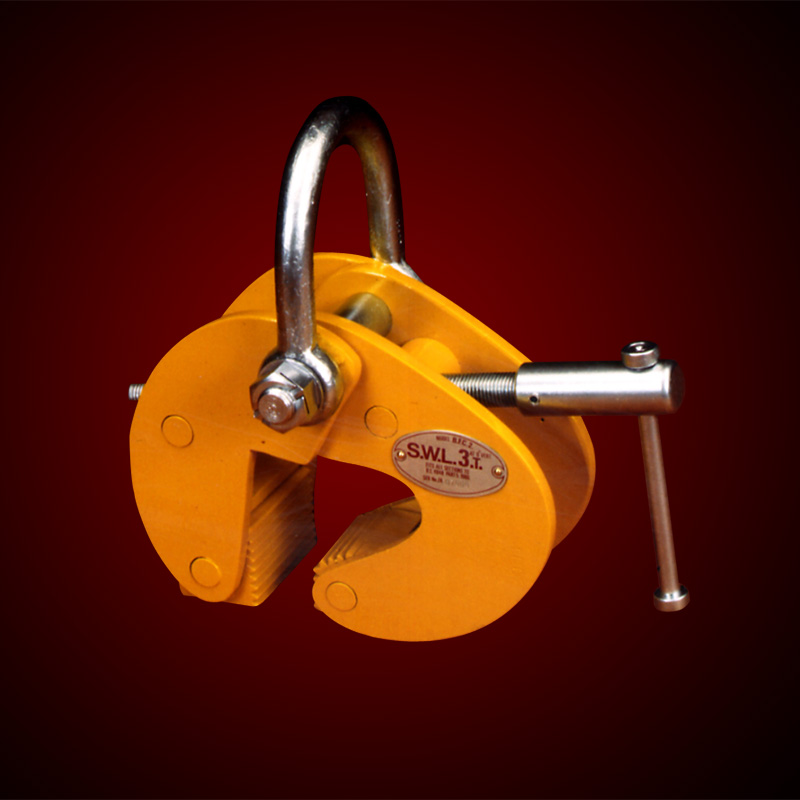

ADJUSTABLE BULB FLATS SECTION CLAMPS
Incorporating Hardened Jaws, Adjusting Mechanism and Lifting Shackle.
BFC1, BFC2
The SUPERCLAMP bulb flats section clamp offers the benefit of maximum adjustability to fit standard dimensions of bulb flats steel sections.
These clamps are primarily developed for a multitude of applications in civil and marine engineering, construction and maintenance.
The adjusting bar secures maximum adjustability, and eliminates the use of additional tools or width adjusting components.
All sections equivalent or manufactured to BS EN 10067
Can be used up to 15 degrees without loss of workload.
| MODEL | WLL at 0° Vertical | A Jaw Grip Adjustment | J Inside Shackle Crown to Spacer | K Sideplate Thickness | Average Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Lbs | Kg | inch min-max | mm min-max | inch | mm | mm | Lbs | Kg | |
| BFC1 | 2240 | 1016 | All sections equivalent or manufactured to BS EN 10067 | 3 1/2” | 89 | 6.0 | 15.4 | 7.0 | |
| BFC2 | 6720 | 3048 | 3 3/4” | 95 | 10.0 | 26.5 | 12.0 | ||
Incorporating Hardened Jaws, Adjusting Mechanism and Lifting Shackle.
GUIDE TO CORRECT USE
BFC1, BFC2
The SUPERCLAMP bulb flats section clamp offers the benefit of maximum adjustability to fit standard dimensions of bulb flats steel sections.
These clamps are primarily developed for a multitude of applications in civil and marine engineering, construction and maintenance.
The adjusting bar secures maximum adjustability, and eliminates the use of additional tools or width adjusting components.
All sections equivalent or manufactured to BS EN 10067
